Product Description

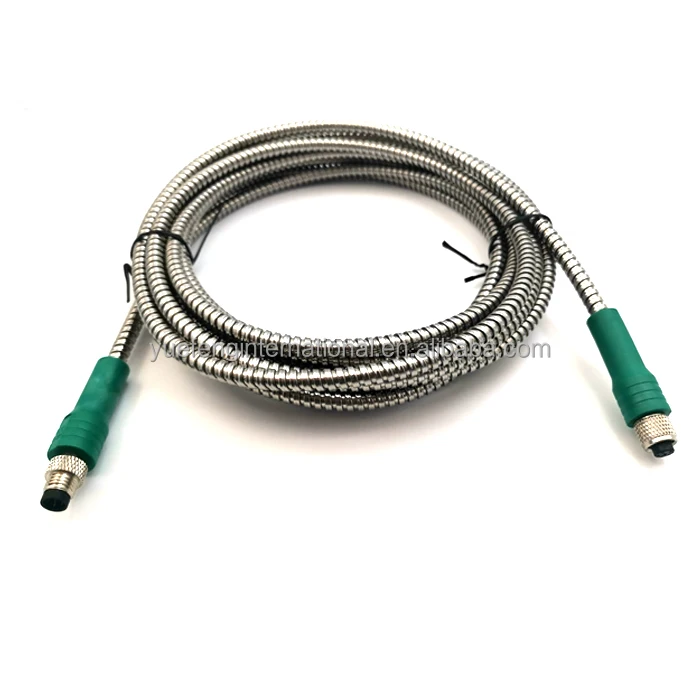

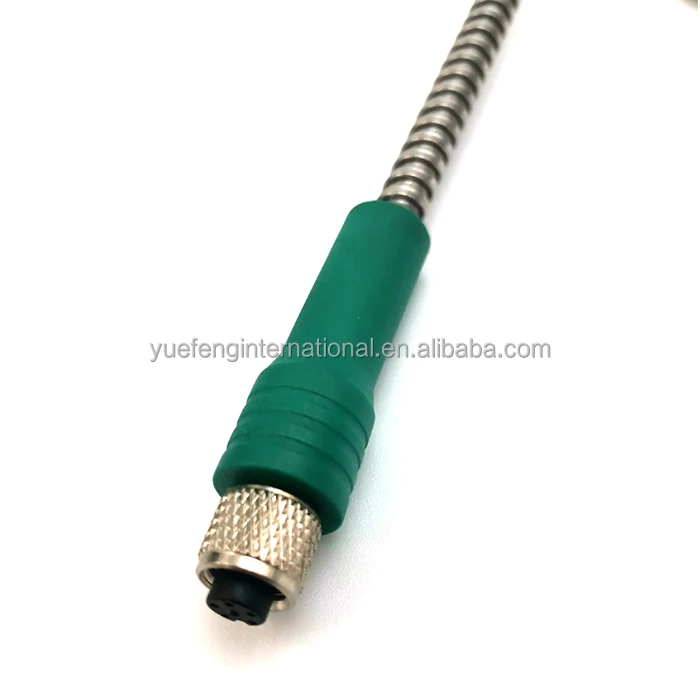

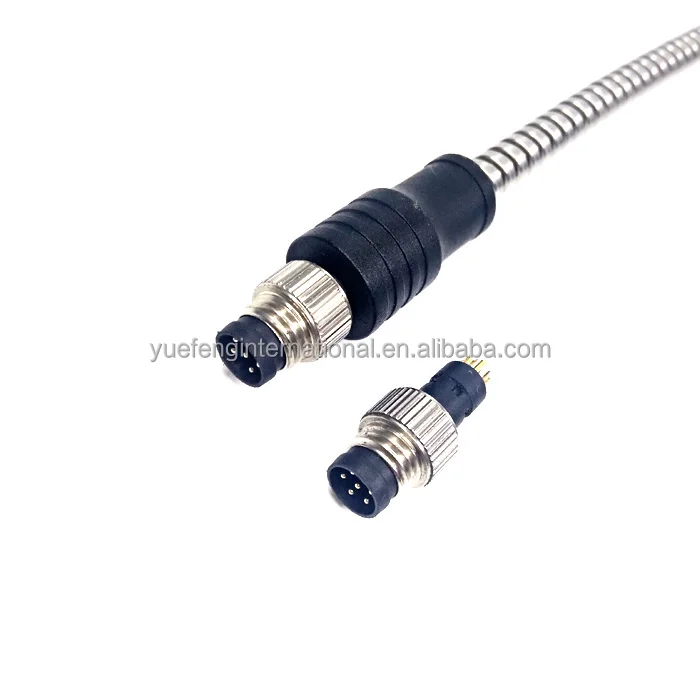

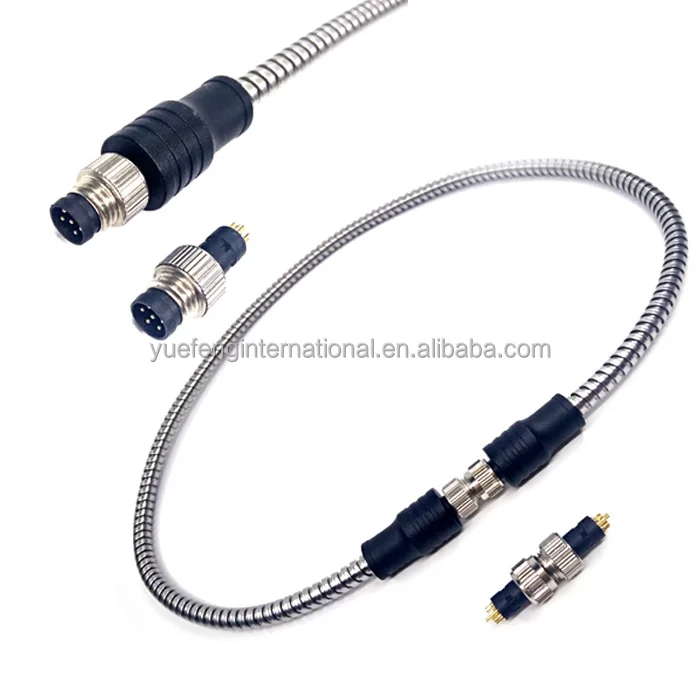

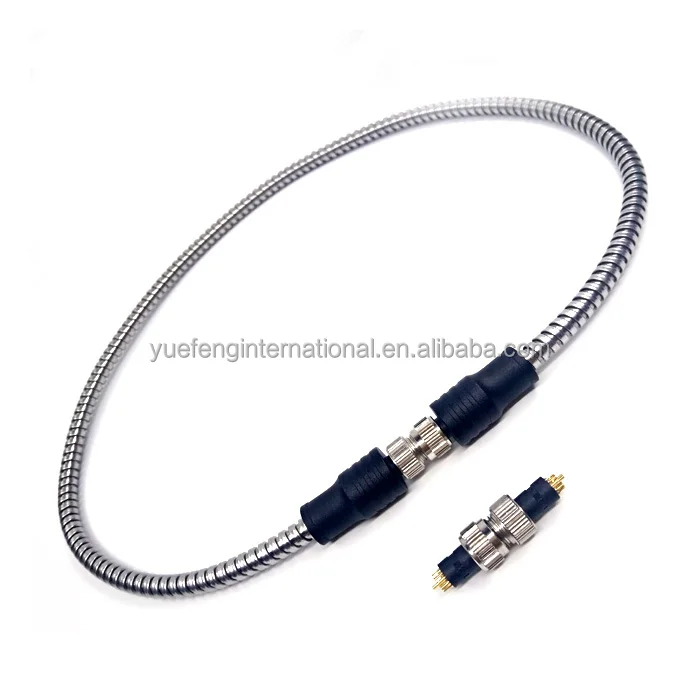

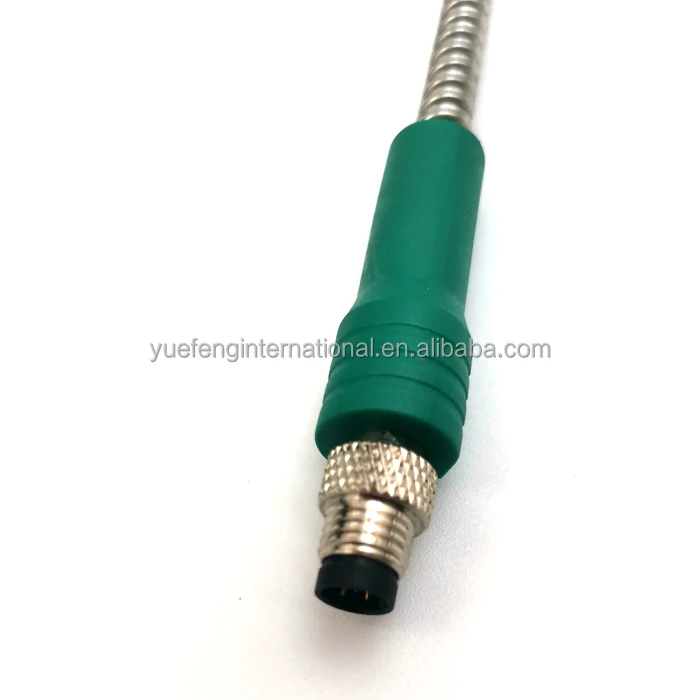

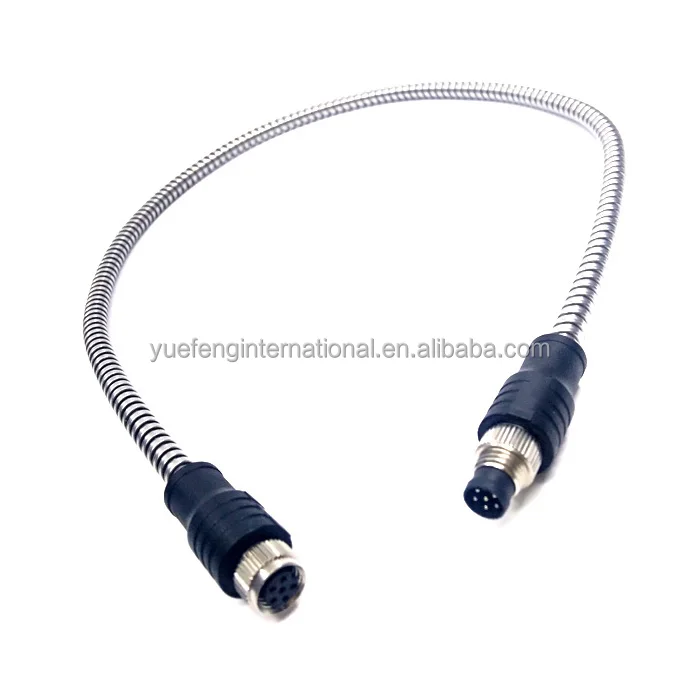

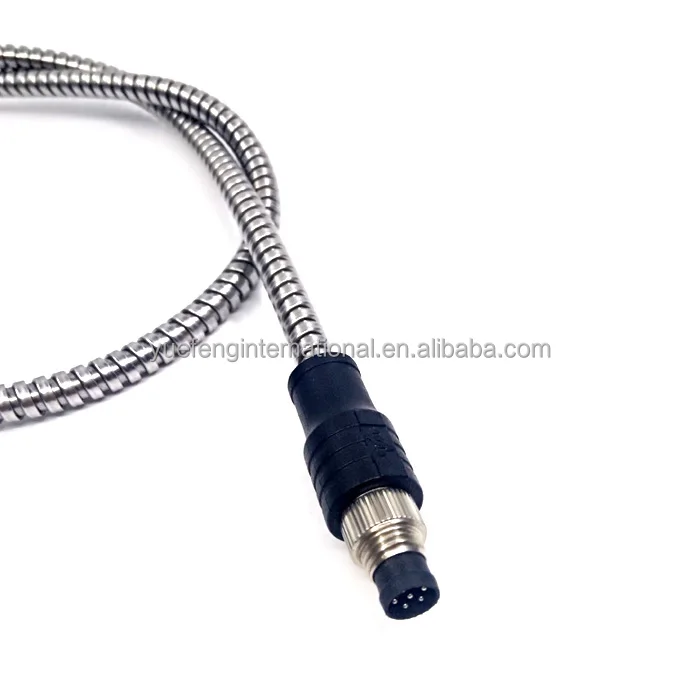

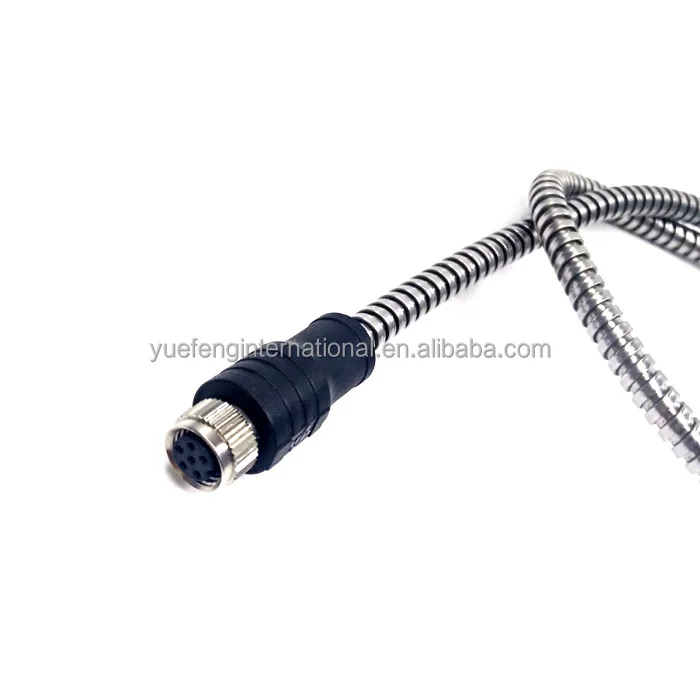

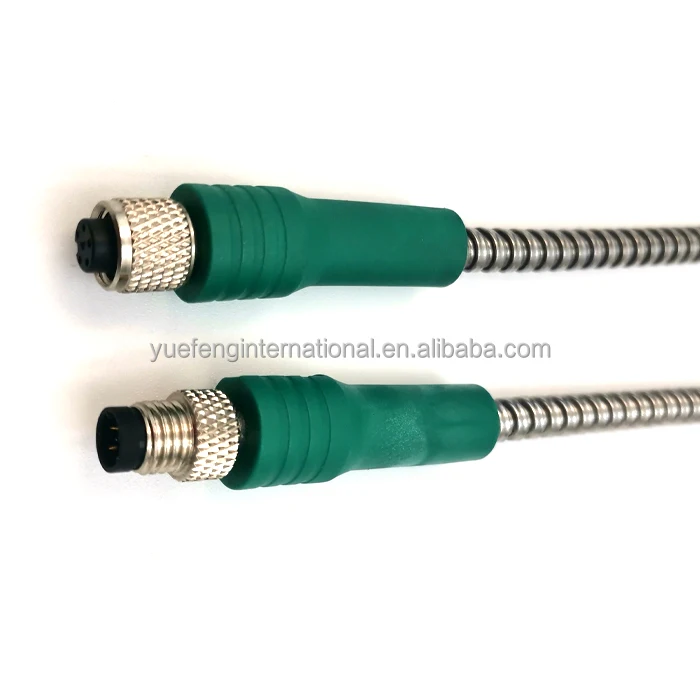

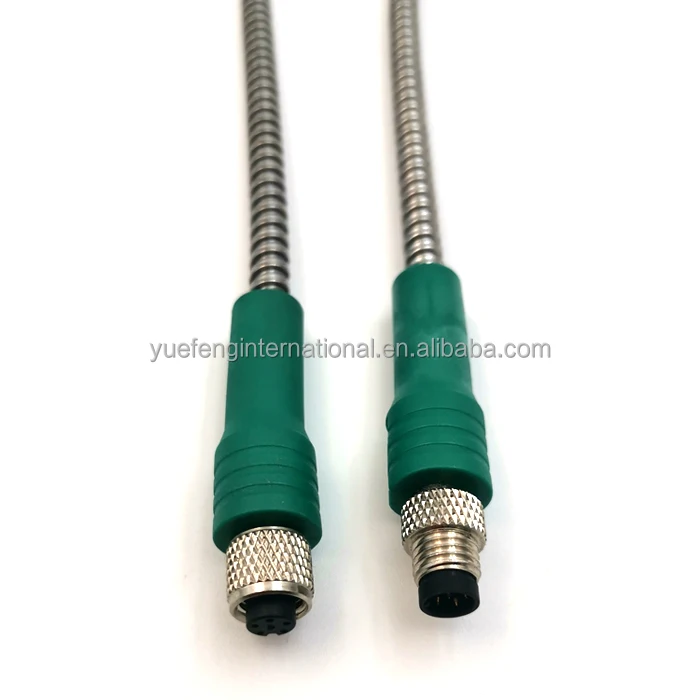

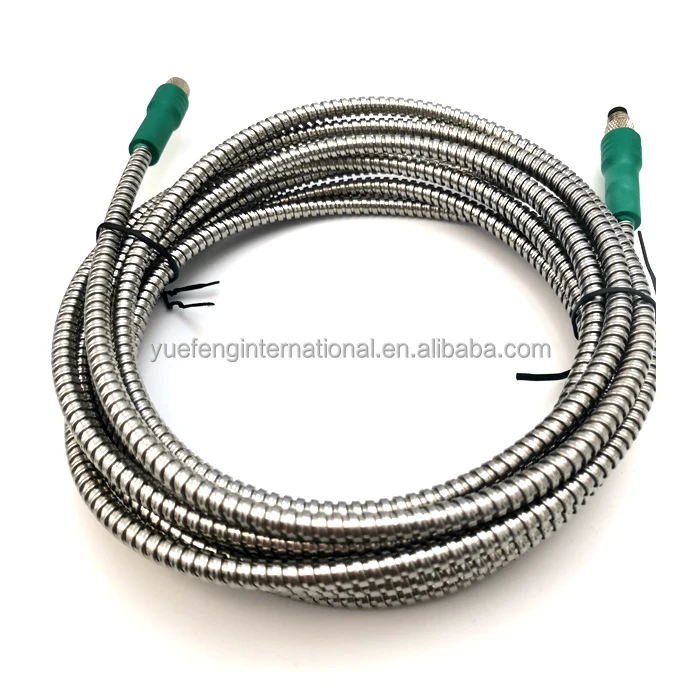

MM8 Pre-molded PVC cable connectors with 12mm thread locking mechanism, rated IP67 protection degree,contacts configuration is 6 poles. 360°EMC shielding is available for option. Compliant with IEC 61076-2-101 and mainly designed for signal transmission.
1.Cable length: customize
2. Degree of protection IP 67
3. 5 poles per connector is available
4. Operating voltage 60V; Current range: 4A
5. Anti-vibration locking screw design
Technical Overview Data
| Standard | IEC 61076-2-101 | Cable jacket material | PUR or PVC/Teflon |
| Connection type | Single ended cable | Orientation | Straight |
| Wire gauge | 26AWG/0.14mm2 | Insert/ Housing | TPU |
| Overmold/ Shell | TPU | Rated current | 1.5 A |
| Connector contacts | Brass with gold plated | Rated voltage | 30V |
| Ambient temperature | -45°C ~ + 80°C | Coupling nut/screw | Brass with nickel plated screw |
| Insulation resistance | ≥100 MΩ | Sealing | O-ring |
| Contacts resistance | ≤ 5 mΩ | Shielding | Available |
| Wire Termination | Soldering | IP rating | IP67 |
Application:
1.Sensor, actuator, encoder, servo motors
2.Factory automation and process control
3. Packaging, labeling and logistic devices
4. Industrial instrumentation
5. Commercial electronics PCBA
6. Industrial safety light curtain, light grid, switches
7. Power supply
8 .Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000
9. LED display panel & outdoor LED lighting
Quality guaranteed:
1.Screws/ nuts material: Brass C3604 with 120μ" nickel plated, CNC parts.
2. Male contacts material: Brass C3604, 3μ" gold plated on nickel base, machined solid pin.
3. Female contacts material: Phosphor bronze C5441 with 3μ" gold plated on nickel base, machined solid pin.
4. Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃/ 90℃.
5. Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
6. Cable bending endurance: ≥3000 times, bending angle ±90°, loading 250g, frequency 40 times per minute, axle radius 12.7mm.
7.RoHS compliant.
