Product Description

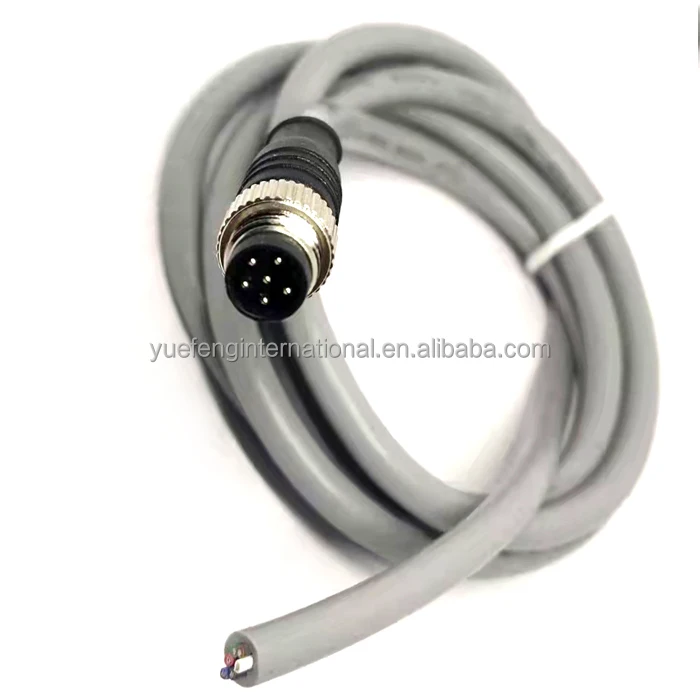

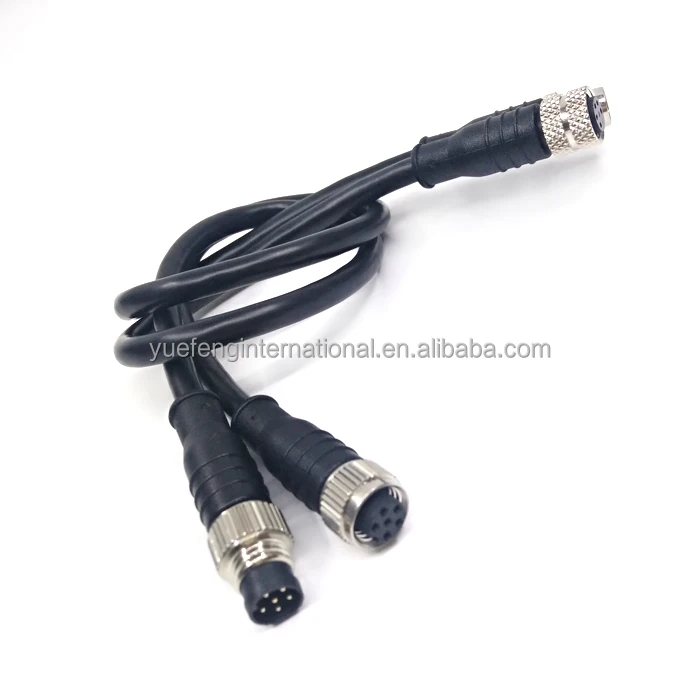

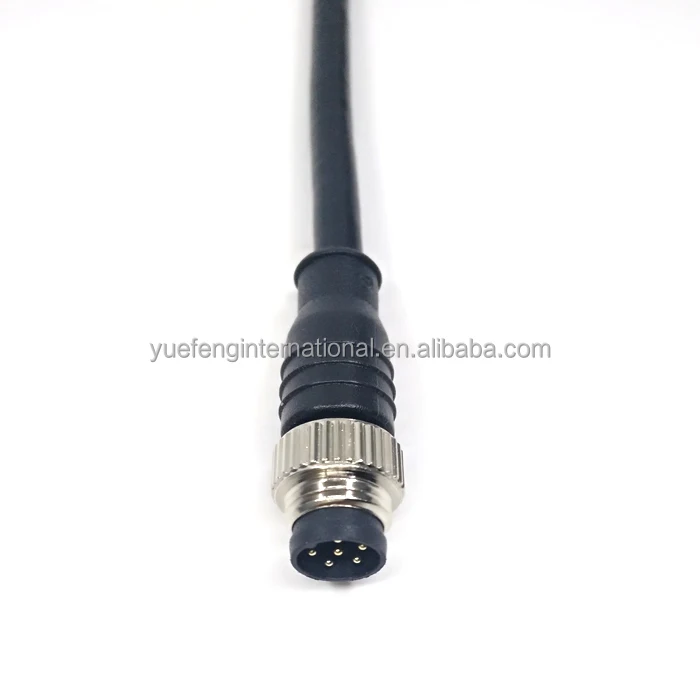

M8 connecting connectors and M8 cables are the optimal solution to put all common sensors, lights, Vision and ID-products into operation. Different sizes and features enable the application in different fields. Cableforce connecting cables are characterized by a sturdy metal union nut, good stripping properties and a high protection class. It is one of the most commonly used connectors in the factory automation and sensor industry.
1. Tailor made material to meet various application conditions
2. High quality gold-plated solid phosphor bronze contacts ≥ 600 times mating life
3. Durable PVC/PUR cables for use in wet rooms, under water as well as outdoor
4 Good stripping and terminating properties
5.Sturdy metal coupling screws with anti-vibration design
6. UV Resistant, Hydrolysis Resistant, 48 hours Salt Spray Test
7. RoHS compliant
Technical Overview Data
| Standard | IEC 61076-2-104 | Cable jacket material | TPE ,PUR,PVC |
| Connection type | Single ended cable | Wire insulation | SR-PVC |
| Orientation | Straight | Wire gauge | 26AWG/0.14mm2 |
| Insert/ Housing | TPU | Overmold/ Shell | TPU |
| Rated current | 1 A | Connector contacts |
|
| Rated voltage | 30V | Ambient temperature | -40°C ~ + 85°C |
| Coupling nut/screw | Brass with nickel plated screw | Insulation resistance | ≥100 MΩ |
| Sealing | O-ring | Contacts resistance | ≤ 5 mΩ |
| Shielding | Available | Wire Termination | Soldering |
| IP rating | IP67 |
Related products:
Application:
1.Sensor, actuator, encoder, servo motors
2.Factory automation and process control
3. Packaging, labeling and logistic devices
4. Industrial instrumentation
5. Commercial electronics PCBA
6. Industrial safety light curtain, light grid, switches
7. Power supply
8 .Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000
9. LED display panel & outdoor LED lighting
Quality guaranteed:
1.Screws/ nuts material: Brass C3604 with 120μ" nickel plated, CNC parts.
2. Male contacts material: Brass C3604, 3μ" gold plated on nickel base, machined solid pin.
3. Female contacts material: Phosphor bronze C5441 with 3μ" gold plated on nickel base, machined solid pin.
4. Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃/ 90℃.
5. Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
6. Cable bending endurance: ≥3000 times, bending angle ±90°, loading 250g, frequency 40 times per minute, axle radius 12.7mm.
7.RoHS compliant.
