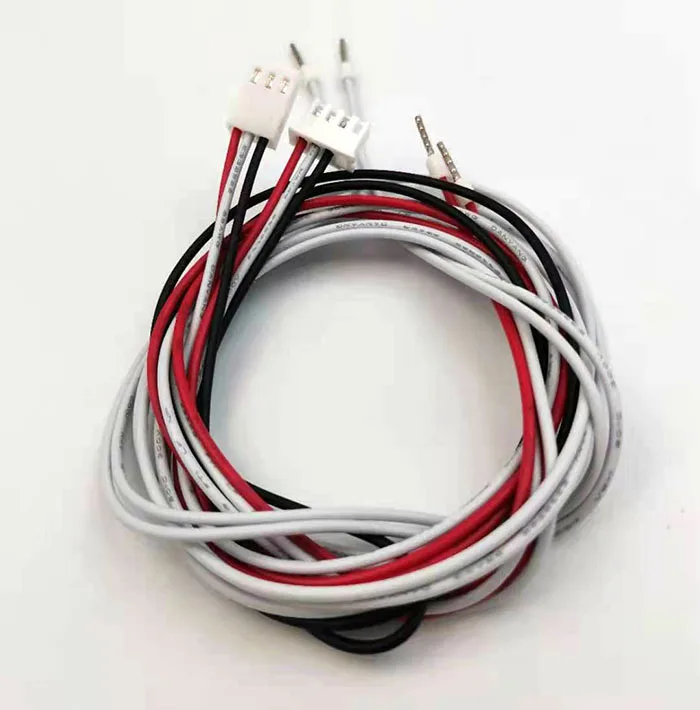

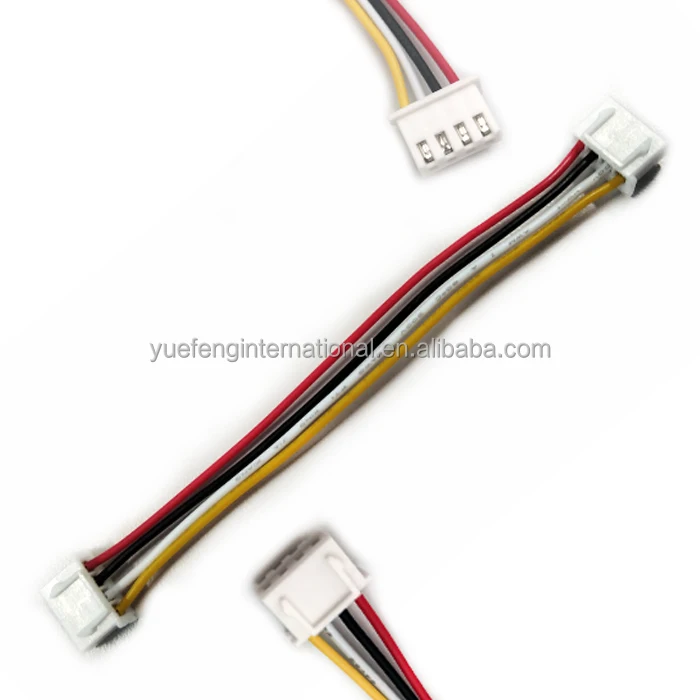

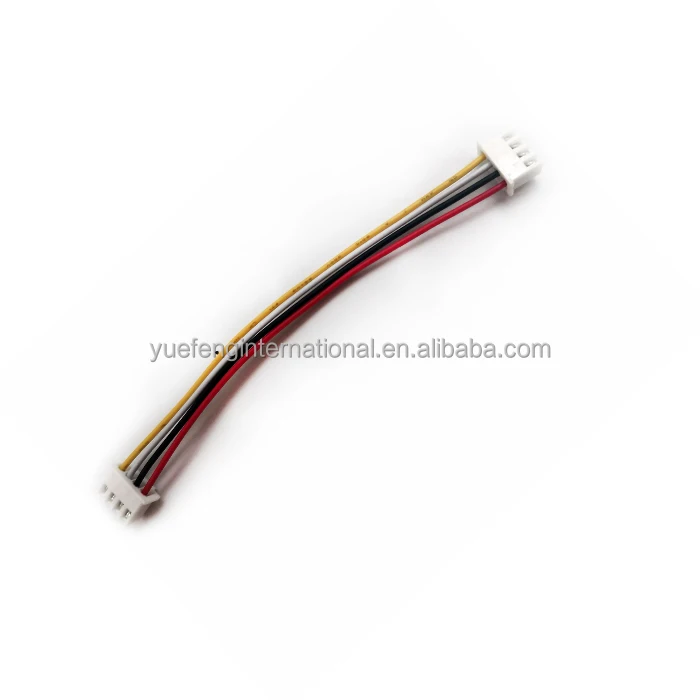

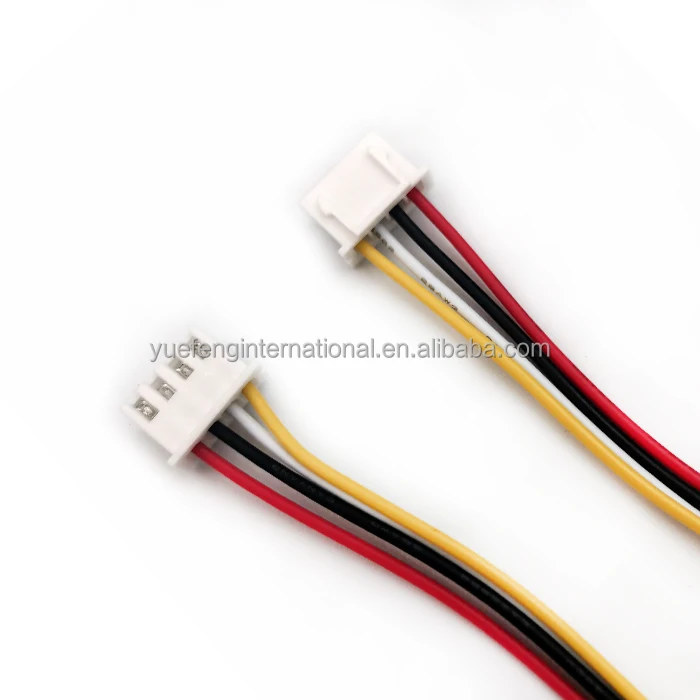

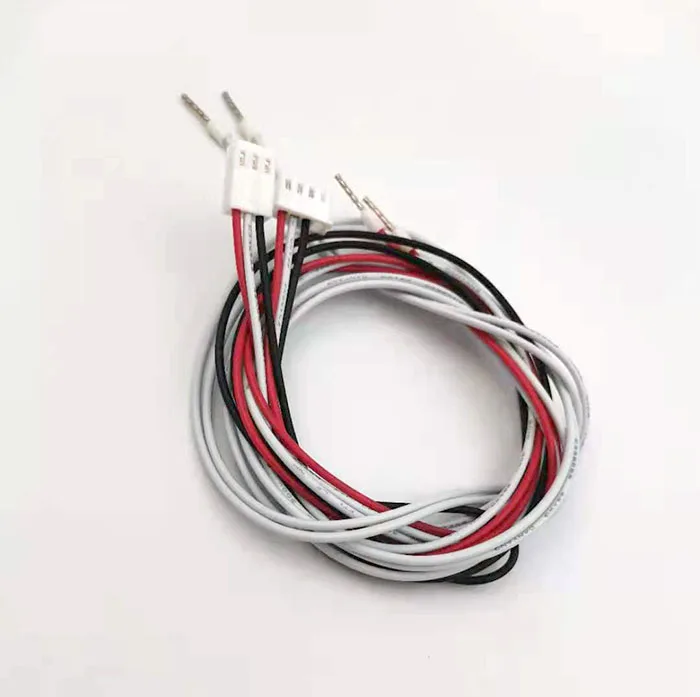

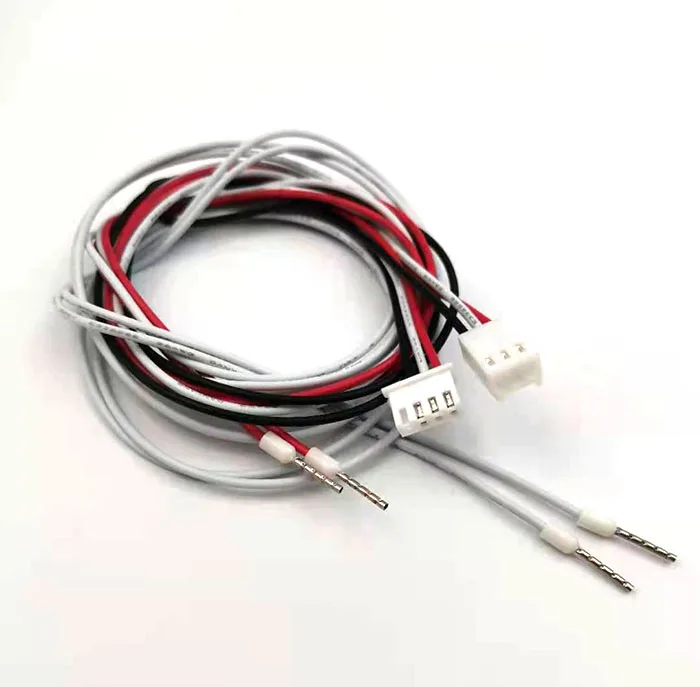

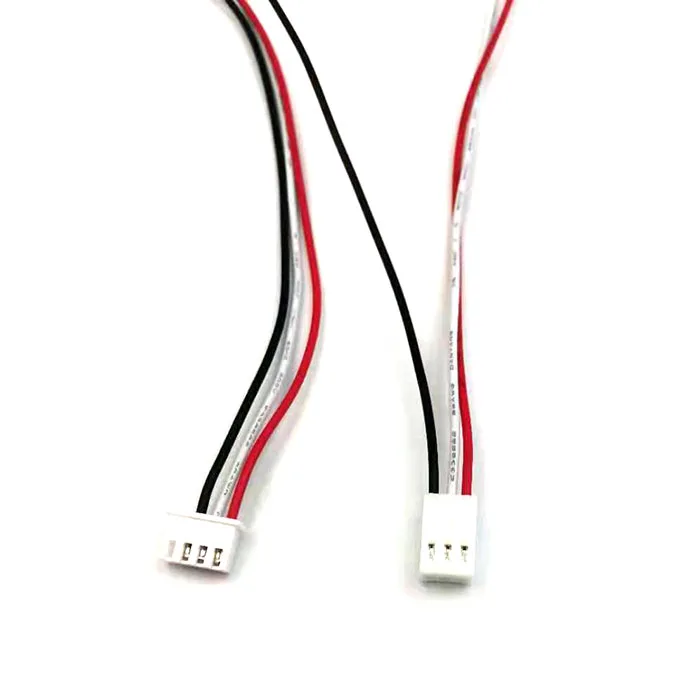

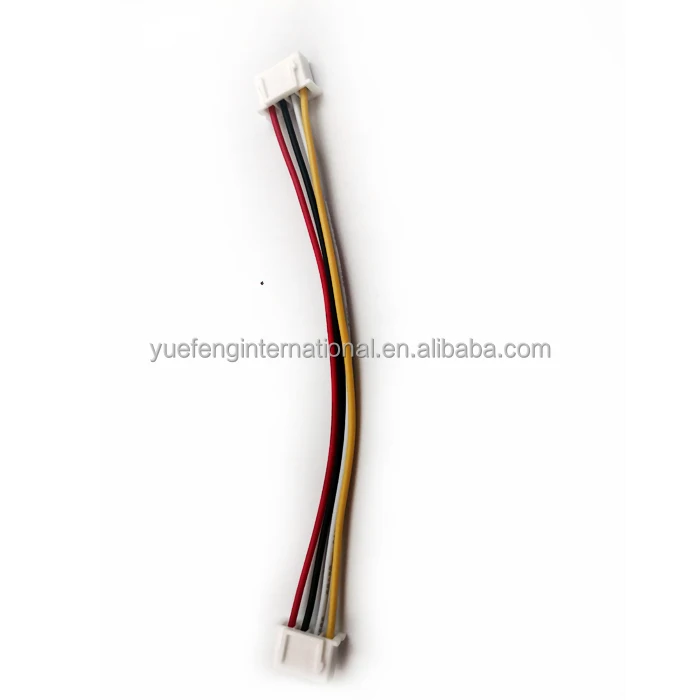

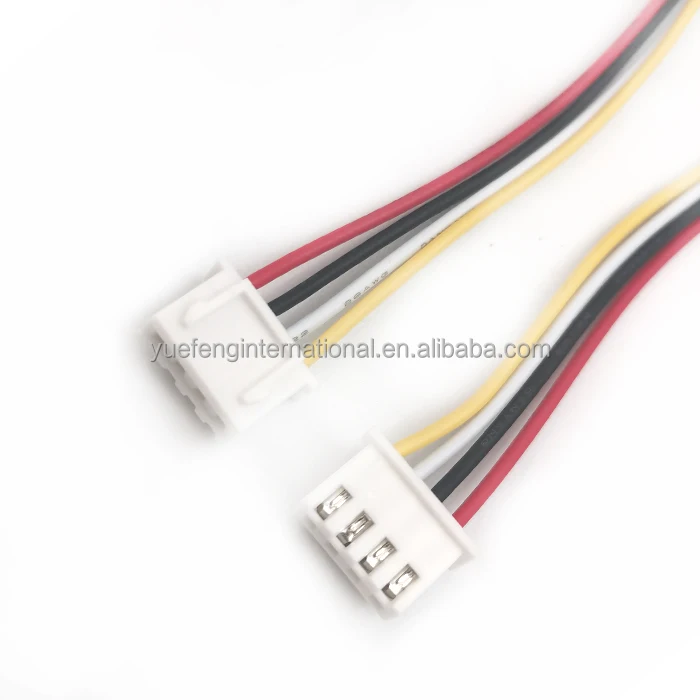

OEM SH ZH PH Connector terminal cable assembly JST XHP 4 pin Connector Assembly Wire Harness
Technical Overview Data
| Product | Wire harness | Connector | JST,TE , MolexOriginal |
| Pin positions | 3Pin/4Pin/5Pin/6Pin/8Pin/12Pin/17Pin | Mating cycle | >10000 |
| Terminal 1 | SXH-001T-P0.6 JST | Contact Resistance | <5mΩ |
| Terminal 2 | 966067-3 TE | Insulation Resistance | >100mΩ |
| Shell material | Plastic | Temperature range | -40℃~ +85℃ |
| Insert material | VO94 | Voltage | DC 300V |
| Contact material | Brass with gold Plated | Cable | UL |
Related products:
Product drawing
Application:
1.Sensor, actuator, encoder, servo motors
2.Factory automation and process control
3. Packaging, labeling and logistic devices
4. Industrial instrumentation
5. Commercial electronics PCBA
6. Industrial safety light curtain, light grid, switches
7. Power supply
8 .Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000
9. LED display panel & outdoor LED lighting
Quality guaranteed:
1.Screws/ nuts material: Brass C3604 with 120μ" nickel plated, CNC parts.
2. Male contacts material: Brass C3604, 3μ" gold plated on nickel base, machined solid pin.
3. Female contacts material: Phosphor bronze C5441 with 3μ" gold plated on nickel base, machined solid pin.
4. Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃/ 90℃.
5. Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
6. Cable bending endurance: ≥3000 times, bending angle ±90°, loading 250g, frequency 40 times per minute, axle radius 12.7mm.
7.RoHS compliant.
