Product Description

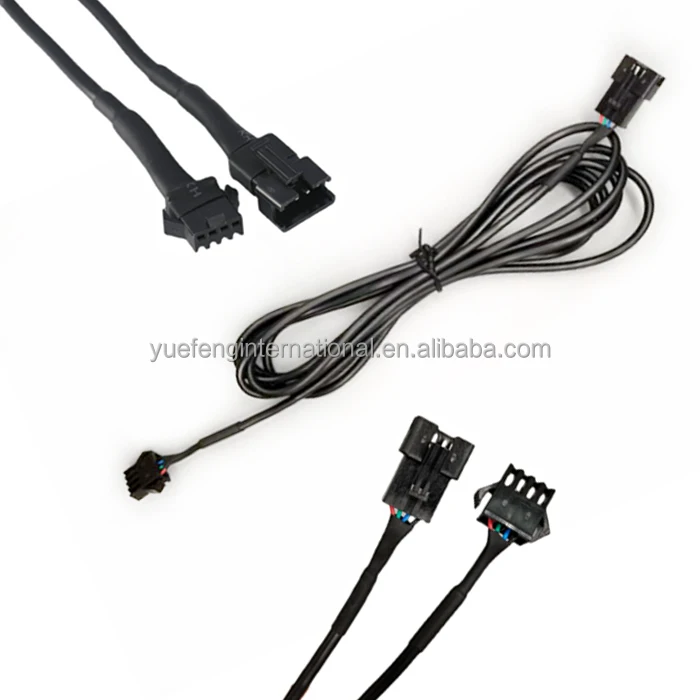

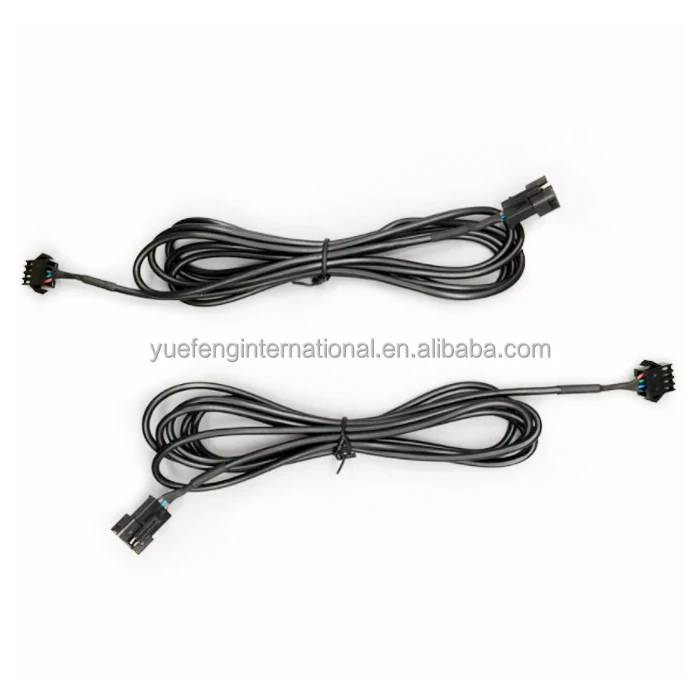

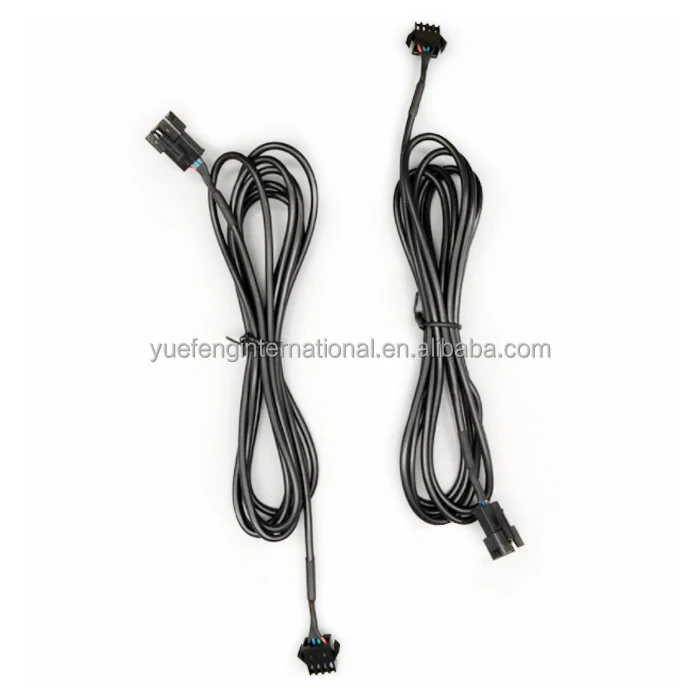

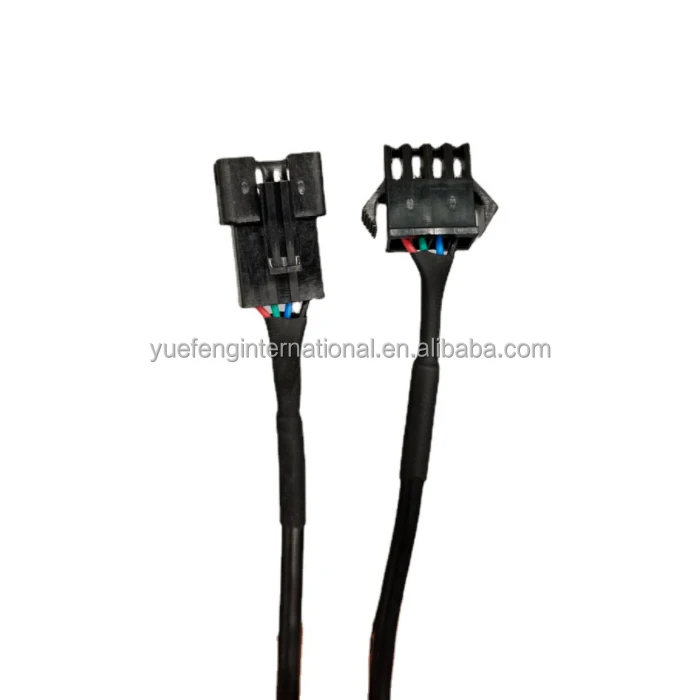

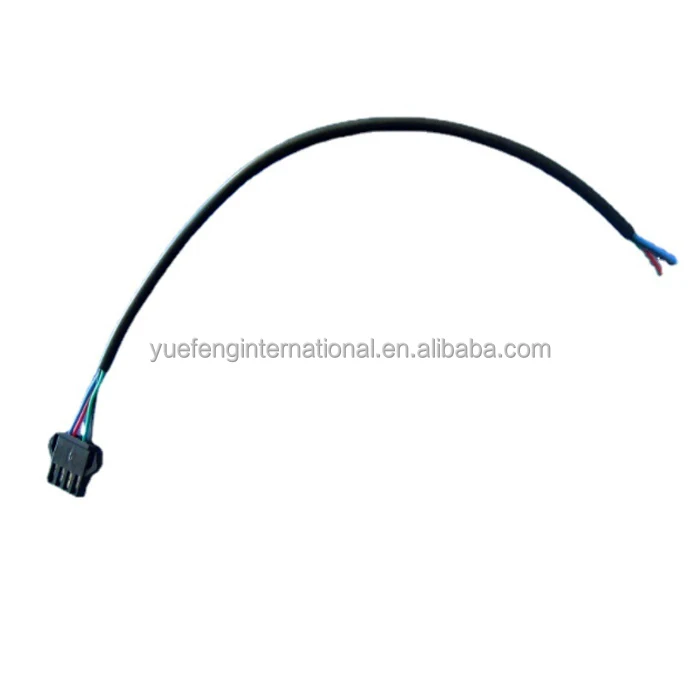

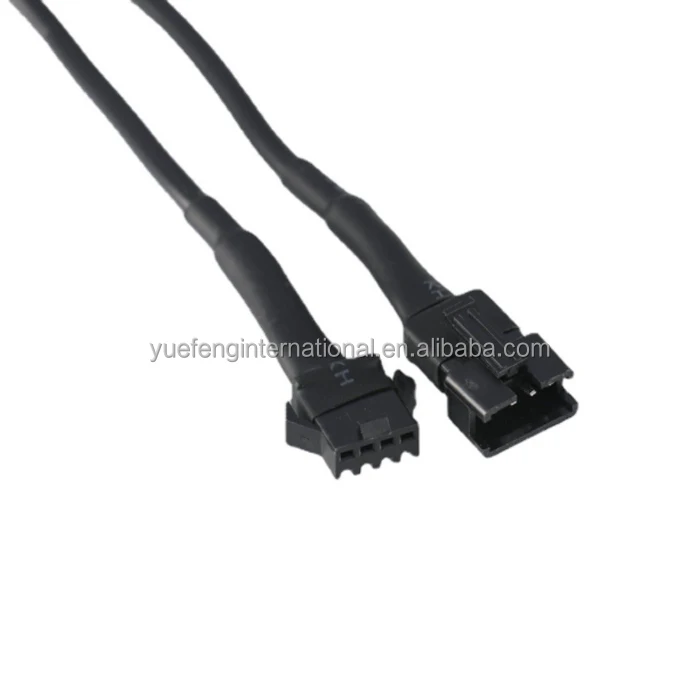

Hot sale 4 Pin Led Extens Black Silicone cable JST-SM 2.5 mm Pitch Assembly Wiring Harness for RGB Artificial Intelligence
Technical Overview Data
| Product | Wire harness | Connector | JST,Molex Original |
| Pin positions | 3Pin/4Pin/5Pin/6Pin/8Pin/12Pin/17Pin | Mating cycle | >1000 |
| Locking Mechanism | Plug | Contact Resistance | <5mΩ |
| Termination | Soldering | Insulation Resistance | >100mΩ |
| Shell material | Plastic | Temperature range | -40℃~ +85℃ |
| Insert material | PA66 | Rated voltage | 60V~30V |
| Contact material | Brass with gold Plated | Rated current | 4A/2A/1.5A |
Application:
1.Sensor, actuator, encoder, servo motors
2.Factory automation and process control
3. Packaging, labeling and logistic devices
4. Industrial instrumentation
5. Commercial electronics PCBA
6. Industrial safety light curtain, light grid, switches
7. Power supply
8 .Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000
9. LED display panel & outdoor LED lighting
Quality guaranteed:
1.Screws/ nuts material: Brass C3604 with 120μ" nickel plated, CNC parts.
2. Male contacts material: Brass C3604, 3μ" gold plated on nickel base, machined solid pin.
3. Female contacts material: Phosphor bronze C5441 with 3μ" gold plated on nickel base, machined solid pin.
4. Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃/ 90℃.
5. Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
6. Cable bending endurance: ≥3000 times, bending angle ±90°, loading 250g, frequency 40 times per minute, axle radius 12.7mm.
7.RoHS compliant.
Packaging & Shipping
1. Generally for Blueendless brand factory carton packaging
2. Can accept customer OEM bulk custom packaging design
Our Services
Company Information
Dongguan Yuefeng Electronic Technology Co., Ltd. was established in May, 2015 and is located in Yangwu, Daling Mountain, Dongguan. The company always adheres to the service concept of "scientific and technological innovation, win-win cooperation, honesty, efficiency and considerate service", and builds an enterprise with high technology and brand. We have a professional team and mature technology, the company's main products: M12 connector,M8 connector,M12 able,M8 cable,Audio and video cable, terminal cable, electrical wire, custom cable,wire harness, cable assembly,HD data cable, Apple data cable, USB data, etc, the company's business scope includes processing of supplied materials and customized products.
